Fuel Injector Holder - Small (EV-14 and Pico)
12Couldn't load pickup availability
Select injector o-ring to o-ring length & end style above when ordering.
In Stock. Ships within 1 business day.
Description

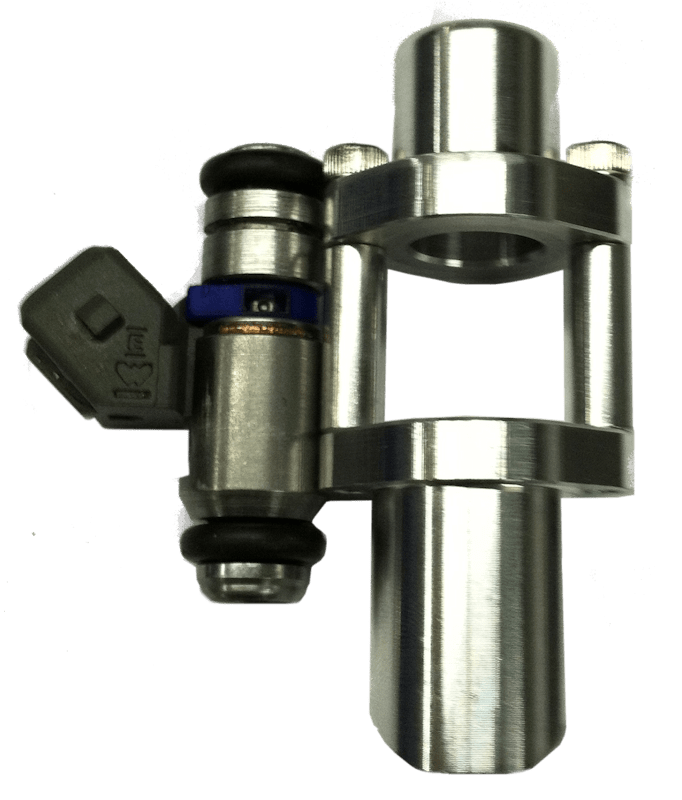

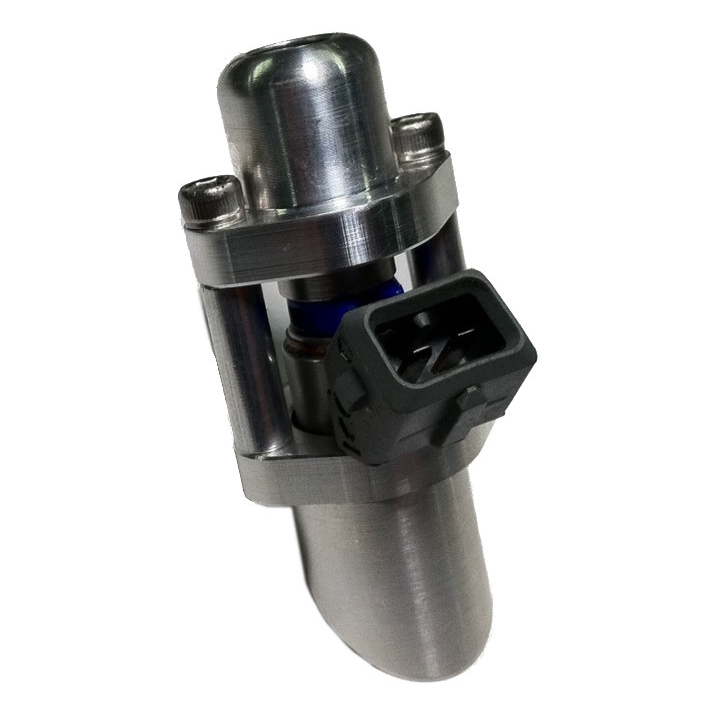

Additional fuel injector holder / boss, CNC machined from billet 6061 aluminum.

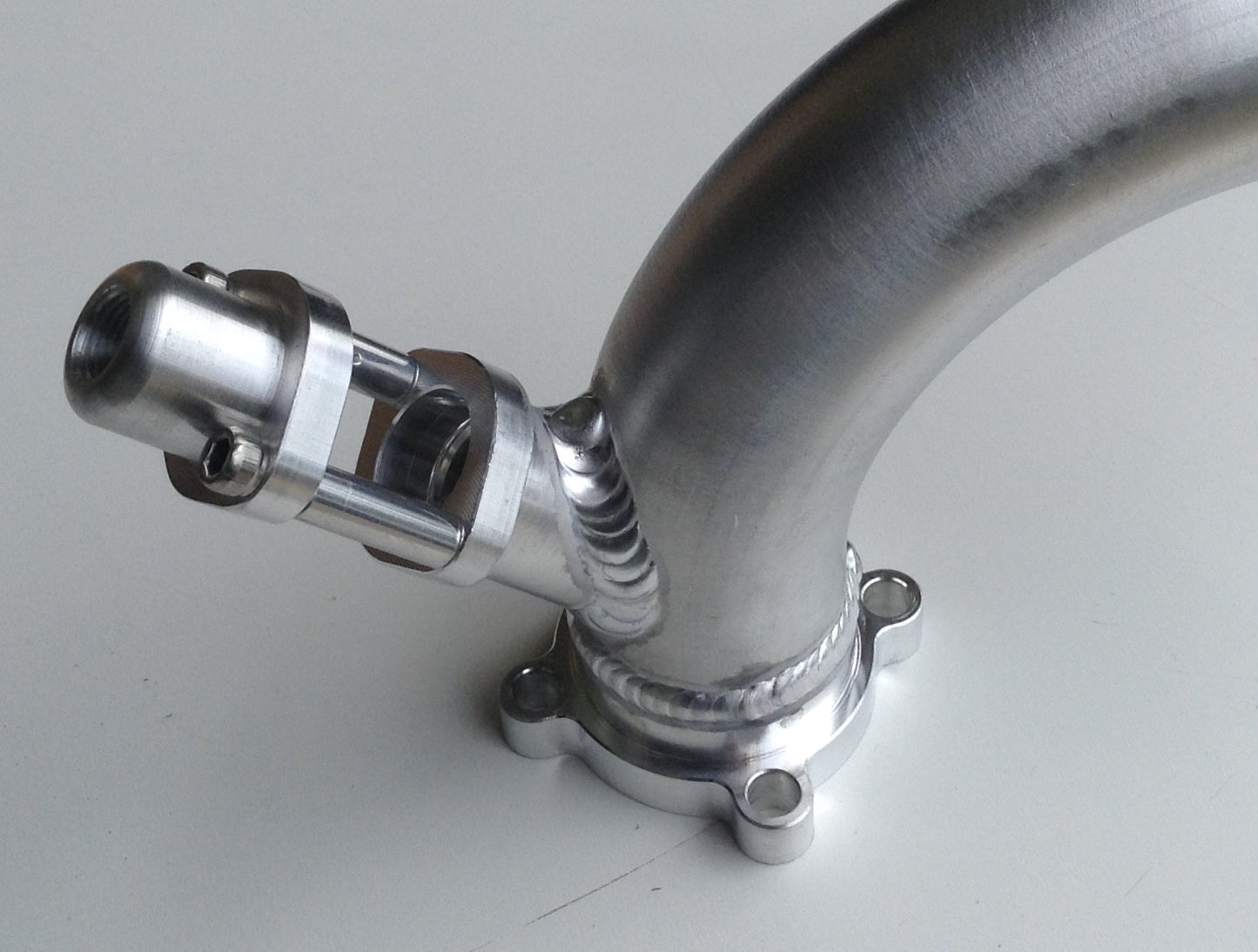

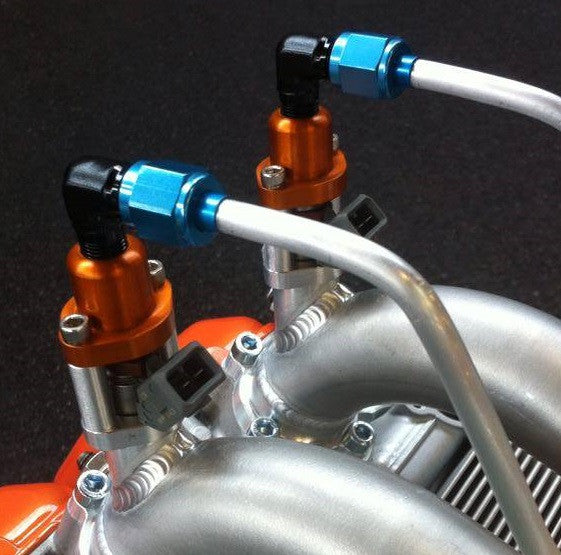

This weld-on fuel injector bung is used mainly in forced induction applications, welded to the charge pipe before throttle body in most cases.
With more vehicles using Methanol and E-85 fuels, these have become a popular way to get more fuel in your engine without the cost of huge primaries. It also allows you to spray near or at the turbo compressor.
Specs

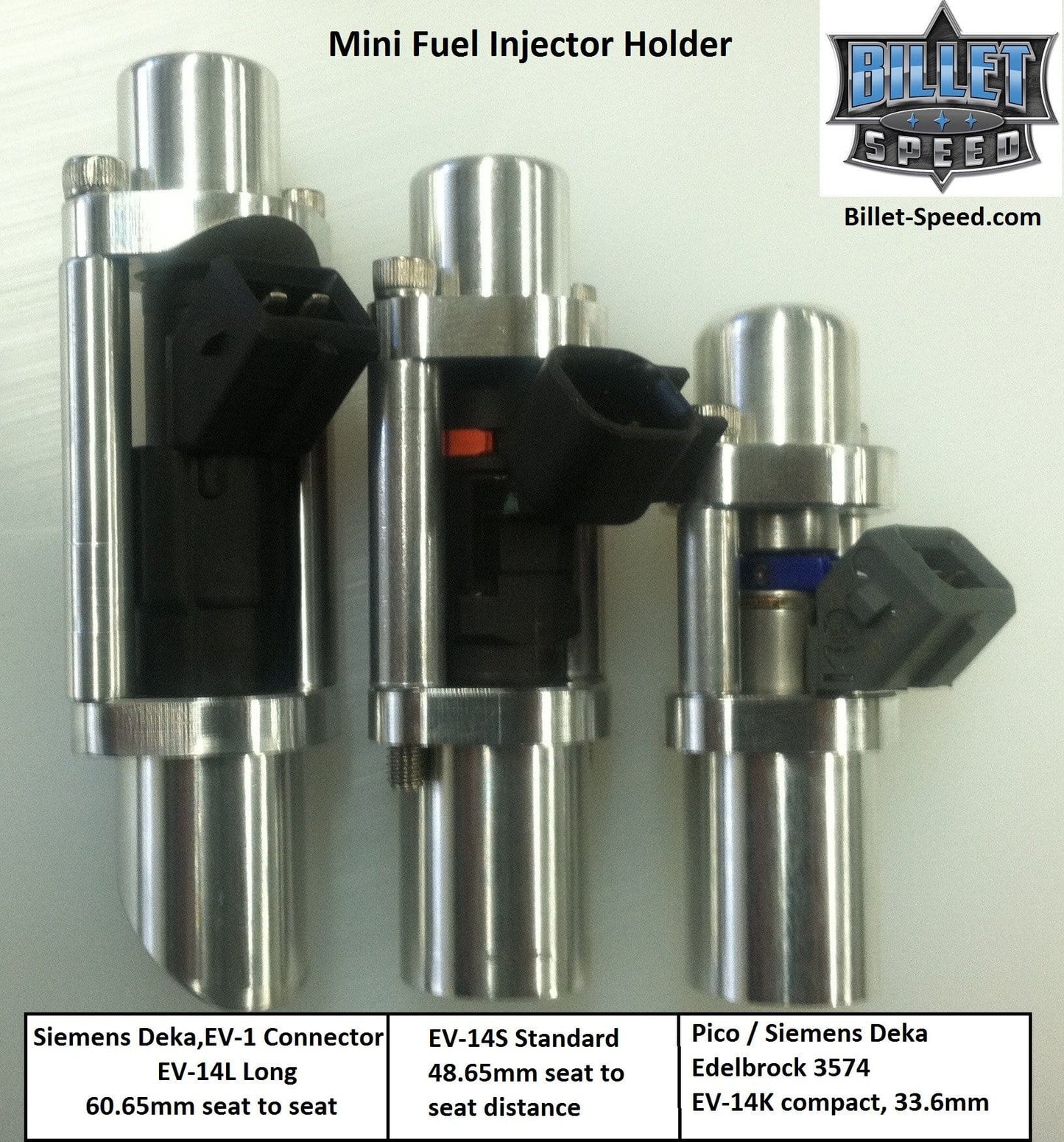

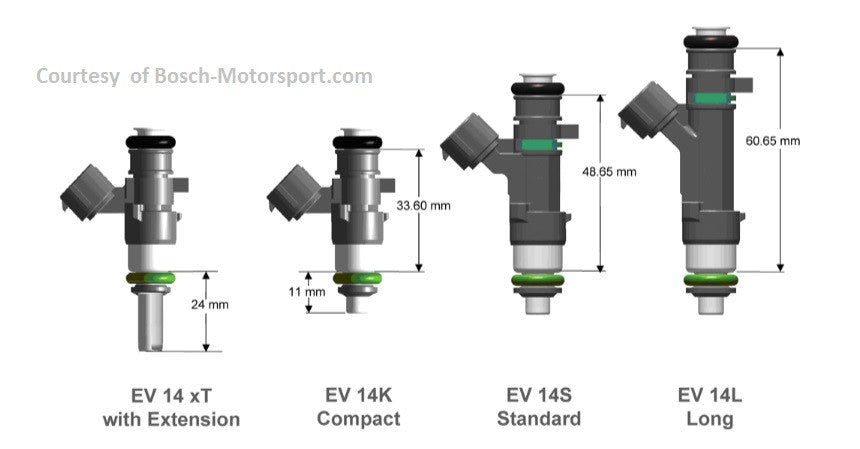

- Fits all 3 Bosch EV-14 injector lengths (34mm, 48mm, 60mm) and Pico, Siemens, Marelli short injectors (34mm)
- Select injector o-ring to o-ring length or style when ordering
- Will only work with 14mm injector O-rings

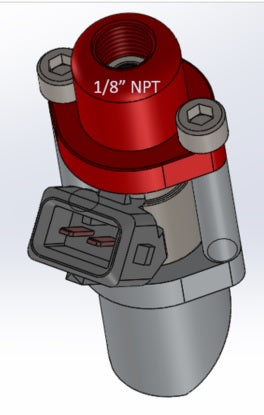

- 1/8" NPT thread for fuel fitting

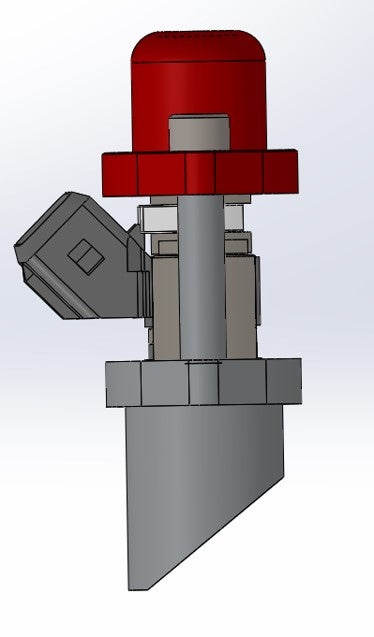

- Choose from straight end or 45 degree bevel cut
- Spacers / dowels insure you are not tightening down on the injector body!
- Stainless steel hardware
- Will NOT WORK with Billet Atomizer injectors. See our large holder for this application.
